| Business Type | Manufacturer, Exporter, Trader |
| Click Here to View Catalogue |  View |
| Country of Origin | India |
| Input | 415 V, 2ph.(of 3 ph.),50 Hz A.C.OR 230V Single Phase |
| Click to view more | |
Product Details
Output
upto 0 – 100 KV AC/DC Variable
Leakage Current
upto 100 mAmp (settable) by rotary switch in steps of 25-50-100 mA
Duty
Intermittent (I.e; 1 Minute Withstand Test)
Cooling
Oil /Air Cooled
“QUADRANT” make ‘Automatic AC/DC HIGH VOLTAGE TEST SET’ are ideal to test dielectric strength of different insulating materials , motor winding transformers, Ceramic HV insulators, cables and different electrical components. It is useful in transformer manufacturing industries, HV motor manufacturing units, cables and insulator industries etc.

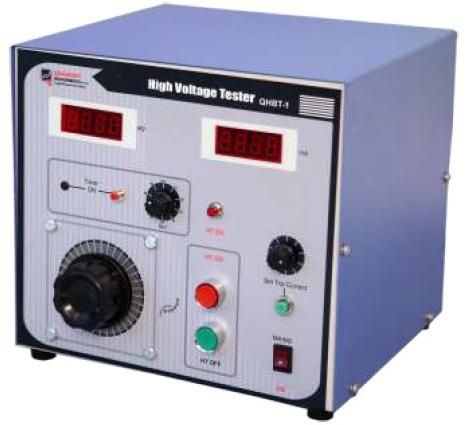

Looking for "QHBT High Voltage Tester" ?
