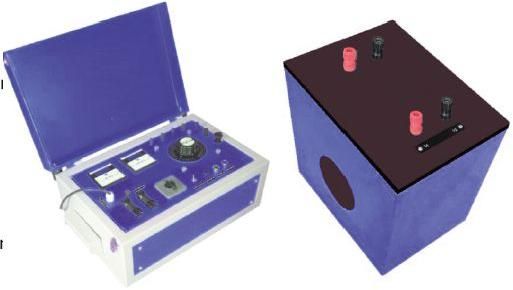

Primary Injection Kit
Leading Manufacturers, Exporters and Trader of 1500 Amp. Primary Injection Kit, CT Type Primary Injection Kit, QDPIK1 Primary Injection Kit, QPIK1 Primary Injection Kit and Single Unit Primary Injection Kit from Nashik.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Input Power Supply | 230 Volts ± 10 %, 50HZ AC single phase |
| Output Test Current | 100A to 1500A. As specified by user |
| Duty Cycle | 10 Min ON, 20 Min OFF |
| Burden (Capacity) | 500VA to 7.5 KVA. As specified by user |
| Click Here to View Catalogue |  View |
Preferred Buyer From
| Location | Anywhere in India |
Features :
- Customization as per customer’s requirements.
- Built in Digital Timer for measuring tripping time
- Designed to offer continuously variable output current
- Single compact unit equipment for easy operaon
- Adequate MCB protection from overloads
- Current range from 100A to 1500A.
| Business Type | Manufacturer, Exporter, Trader |
| Country of Origin | India |
| Input Power Supply | 220 Volts ± 10 %, 50HZ AC single phase |
| Output Test Current | 100A to 2000A. As specified by user |
| Duty Cycle | 10 Min ON, 20 Min OFF as specified by user |
| Burden (Capacity) | 0.5 KVA to 10 KVA. As specified by user |
| Click Here to View Catalogue | View |
Preferred Buyer From
| Location | Anywhere in India |
Features :
- Customization as per customer’s requirements.
- Built in Digital Timer for measuring tripping time
- Designed to offer continuously variable output current
- Single compact unit equipment for easy operaon
- Adequate MCB protection from overloads
- Current range from 100A to 2000A.
| Business Type | Manufacturer, Exporter, Trader |
| Country of Origin | India |
| Supply Input | 3 Phase with Neutral AC 50Hz. (63Amp) |
| Mains ON MCB | 63Amp 4 Poles |
| Digital Voltmeter | 3-1/2 Digit ( 0-15VDC ) to indicate the primary voltage of power transformer |
| Digital Ammeter | 3-1/2 Digit ( 0-100% ) to readout the load current 0 - 1000 Amps |
| Accuracy for Current Reading | + 1% |
| Accuracy for Voltage Reading | + 1% |
| Click Here to View Catalogue | View |
Preferred Buyer From
| Location | Anywhere in India |
Features :
- 1000 Amp DC Current Source
- Various Parameter Display
- Complete system mounted on
- powder coated trolley
- Push buttons for Start, Stop & Reset for safe operation
- Overload Indication and Auto cut off
| Business Type | Manufacturer, Exporter, Trader |
| Country of Origin | India |
| Input Power Supply | 220 Volts ± 10 %, 50HZ AC single phase |
| Output Test Current | 100A to 3000A. As specified by user |
| Duty Cycle | 10 Min ON, 20 Min OFF as specified by user |
| Input Power | 220 Volts ± 10 %, 50HZ AC single phase |
| Burden (Capacity) | 0.5 KVA to 10 KVA. As specified by user |
| Click Here to View Catalogue | View |
Preferred Buyer From
| Location | Anywhere in India |
Features :
- Customization as per customer’s requirements.
- Designed to offer continuously variable output current
- Single compact unit equipment for easy operation
- Adequate MCB protection from overloads
- Light weight CT Type Design for easy transportation Current range from 100A to 2000A.
| Business Type | Manufacturer, Exporter, Trader |
| Country of Origin | India |
| Input power Supply | 220 Volts ± 10 %, 50HZ AC single phase. |
| Output Test Current | 100A to 3000A. As specified by user |
| Duty Cycle | 10 Min ON, 20 Min OFF |
| Input Power | 220 Volts ± 10 %, 50HZ AC single phase |
| Burden (Capacity) | 1 KVA to 20 KVA. As specified by user |
| Click Here to View Catalogue | View |
Preferred Buyer From
| Location | Anywhere in India |
Features :
- Customization as per customer’s requirements.
- Built in Digital Timer for measuring tripping time
- Designed to offer continuously variable output current
- Single compact unit equipment for easy operation
- Adequate MCB protection from overloads
- Current range from 100A to 3000A.
